Handwritten Digits Recognition experiment

This project builds a Convolutional Neural Network (CNN) to classify handwritten digits (0-9) using the MNIST dataset. The model is trained using TensorFlow/Keras and achieves high accuracy in recognizing digits from images.Additionally, an API is provided to perform real-time digit recognition from user-uploaded images.

View the Project on GitHub nagakirankasi/digits_recognition

Handwritten Digit Recognition 📝🔢

Classifying handwritten digits using a CNN model trained on the MNIST dataset.

Overview

This project builds a Convolutional Neural Network (CNN) to classify handwritten digits (0-9) using the MNIST dataset. The model is trained using TensorFlow/Keras and achieves high accuracy in recognizing digits from images.

Additionally, an API is provided to perform real-time digit recognition from user-uploaded images.

📁 Repository Structure

Handwritten-Digit-Recognition/
│── dataset/               # (Optional) Additional dataset files
│── notebooks/             # Jupyter notebooks for EDA & training
│── src/                   # Scripts for model training, evaluation, inference
│── models/                # Saved models and checkpoints
│── results/               # Logs, evaluation reports, and visualizations
│── requirements.txt       # Project dependencies
│── README.md              # Project overview and instructions
│── train.py               # Main script for training the model
│── inference.py           # Script for making predictions
│── app.py                 # Flask/FastAPI app for serving predictions
│── config.yaml            # Model configurations
│── LICENSE                # License file
│── .gitignore             # Ignore unnecessary files

🛠 Installation

1️⃣ Clone the Repository

git clone https://github.com/nagakirankasi/Handwritten-Digit-Recognition.git
cd Handwritten-Digit-Recognition

2️⃣ Install Dependencies

Ensure Python 3.8+ is installed, then run:

pip install -r requirements.txt

📌 Dependencies

tensorflow
keras
scikit-learn
matplotlib
numpy
pandas
jupyter
flask  # (Optional, if serving via API)
fastapi  # (Optional, if serving via FastAPI)
uvicorn  # (Optional, if using FastAPI)

📊 Dataset

We use the MNIST dataset, which contains 60,000 training images and 10,000 test images of handwritten digits (0-9).

📌 Load the dataset in Python:

from tensorflow.keras.datasets import mnist

(X_train, y_train), (X_test, y_test) = mnist.load_data()

📌 Visualizing Sample Digits

import matplotlib.pyplot as plt

fig, axes = plt.subplots(1, 5, figsize=(10, 3))
for i, ax in enumerate(axes):
    ax.imshow(X_train[i], cmap='gray')
    ax.axis('off')
plt.show()

🔧 Preprocessing

  1. Normalization – Scale pixel values to [0,1].
  2. Reshaping – Convert images to (28,28,1) for CNN.
  3. One-hot Encoding – Convert labels into categorical values.
from tensorflow.keras.utils import to_categorical

# Normalize
X_train, X_test = X_train / 255.0, X_test / 255.0

# Reshape for CNN
X_train = X_train.reshape(-1, 28, 28, 1)
X_test = X_test.reshape(-1, 28, 28, 1)

# One-hot encoding
y_train = to_categorical(y_train, 10)
y_test = to_categorical(y_test, 10)

🏗 Model Architecture

This project uses a Convolutional Neural Network (CNN) with the following architecture:

from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import Conv2D, MaxPooling2D, Flatten, Dense, Dropout

model = Sequential([
    Conv2D(32, (3,3), activation='relu', input_shape=(28,28,1)),
    MaxPooling2D((2,2)),
    Conv2D(64, (3,3), activation='relu'),
    MaxPooling2D((2,2)),
    Flatten(),
    Dense(128, activation='relu'),
    Dropout(0.5),
    Dense(10, activation='softmax')
])

model.compile(optimizer='adam', loss='categorical_crossentropy', metrics=['accuracy'])

🚀 Model Training

Train the model using:

python train.py

or manually:

model.fit(X_train, y_train, epochs=10, validation_data=(X_test, y_test))

📌 Save the model:

model.save("models/mnist_model.h5")

📈 Model Evaluation

After training, evaluate the model:

test_loss, test_acc = model.evaluate(X_test, y_test)
print(f"Test Accuracy: {test_acc * 100:.2f}%")

📌 Confusion Matrix

from sklearn.metrics import confusion_matrix
import seaborn as sns

y_pred = model.predict(X_test).argmax(axis=1)
y_true = y_test.argmax(axis=1)

cm = confusion_matrix(y_true, y_pred)
sns.heatmap(cm, annot=True, cmap="Blues", fmt="d")

🖼️ Inference on New Images

Run inference.py to predict new images:

python inference.py --image path/to/image.png

📌 inference.py

import numpy as np
import tensorflow as tf
from tensorflow.keras.models import load_model
from PIL import Image
import argparse

# Load the trained model
model = load_model("models/mnist_model.h5")

def preprocess_image(image_path):
    """Load and preprocess an image for model prediction."""
    img = Image.open(image_path).convert('L')  # Convert to grayscale
    img = img.resize((28, 28))  # Resize to 28x28 pixels
    img = np.array(img) / 255.0  # Normalize pixel values
    img = img.reshape(1, 28, 28, 1)  # Reshape for model input
    return img

def predict_digit(image_path):
    """Predict the digit in the given image."""
    img = preprocess_image(image_path)
    prediction = model.predict(img).argmax()
    return prediction

if __name__ == "__main__":
    parser = argparse.ArgumentParser(description="Handwritten Digit Recognition Inference")
    parser.add_argument("--image", type=str, required=True, help="Path to the image file")
    args = parser.parse_args()

    digit = predict_digit(args.image)
    print(f"Predicted Digit: {digit}")

🖥️ Deploying as an API

Streamlit Implementation

Run the Streamlit app:

streamlit run app.py

📌 API Endpoint

import streamlit as st
import numpy as np
from PIL import Image
import tensorflow as tf
from tensorflow.keras.models import load_model

# Load the trained model
model = load_model("models/mnist_model.h5")

def preprocess_image(image):
    """Preprocess the uploaded image for prediction."""
    img = image.convert('L')  # Convert to grayscale
    img = img.resize((28, 28))  # Resize to 28x28 pixels
    img = np.array(img) / 255.0  # Normalize pixel values
    img = img.reshape(1, 28, 28, 1)  # Reshape for model input
    return img

def predict_digit(image):
    """Predict the digit from the uploaded image."""
    img = preprocess_image(image)
    prediction = model.predict(img).argmax()
    return prediction

# Streamlit UI
st.title("Handwritten Digit Recognition")
st.write("Upload an image of a handwritten digit, and the model will predict the number.")

uploaded_file = st.file_uploader("Choose an image...", type=["png", "jpg", "jpeg"])

if uploaded_file is not None:
    image = Image.open(uploaded_file)
    st.image(image, caption="Uploaded Image", use_column_width=True)
    st.write("Predicting...")

    digit = predict_digit(image)
    st.write(f"Predicted Digit: {digit}")

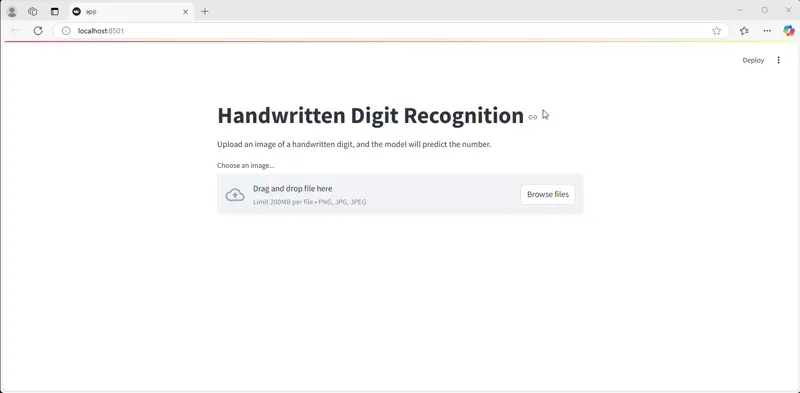

Demo —

📜 License

This project is licensed under the MIT License.

💡 Future Improvements

✔ Improve accuracy with deeper architectures
✔ Train on additional handwritten datasets
✔ Deploy with a UI (Streamlit, Flask)
